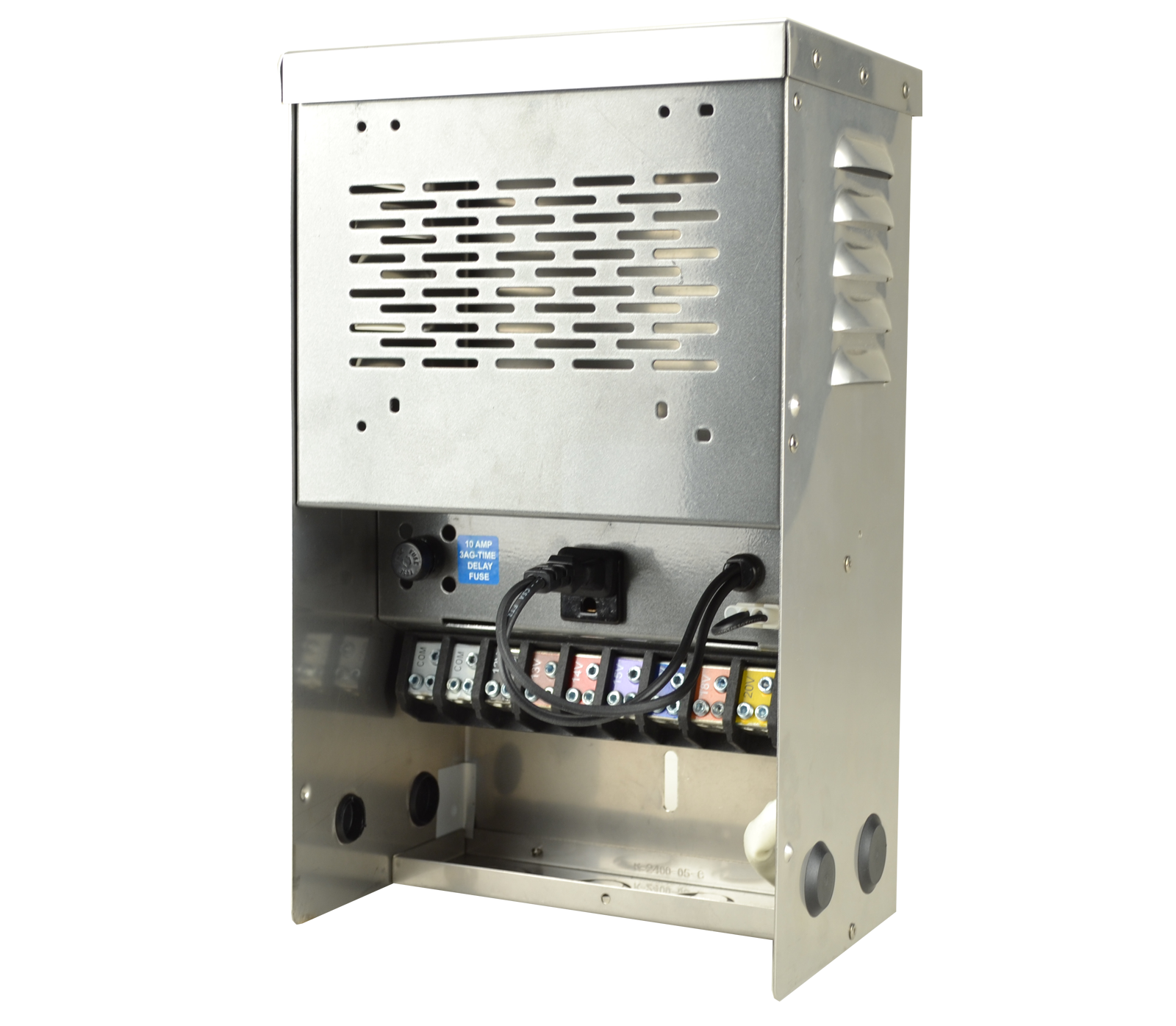

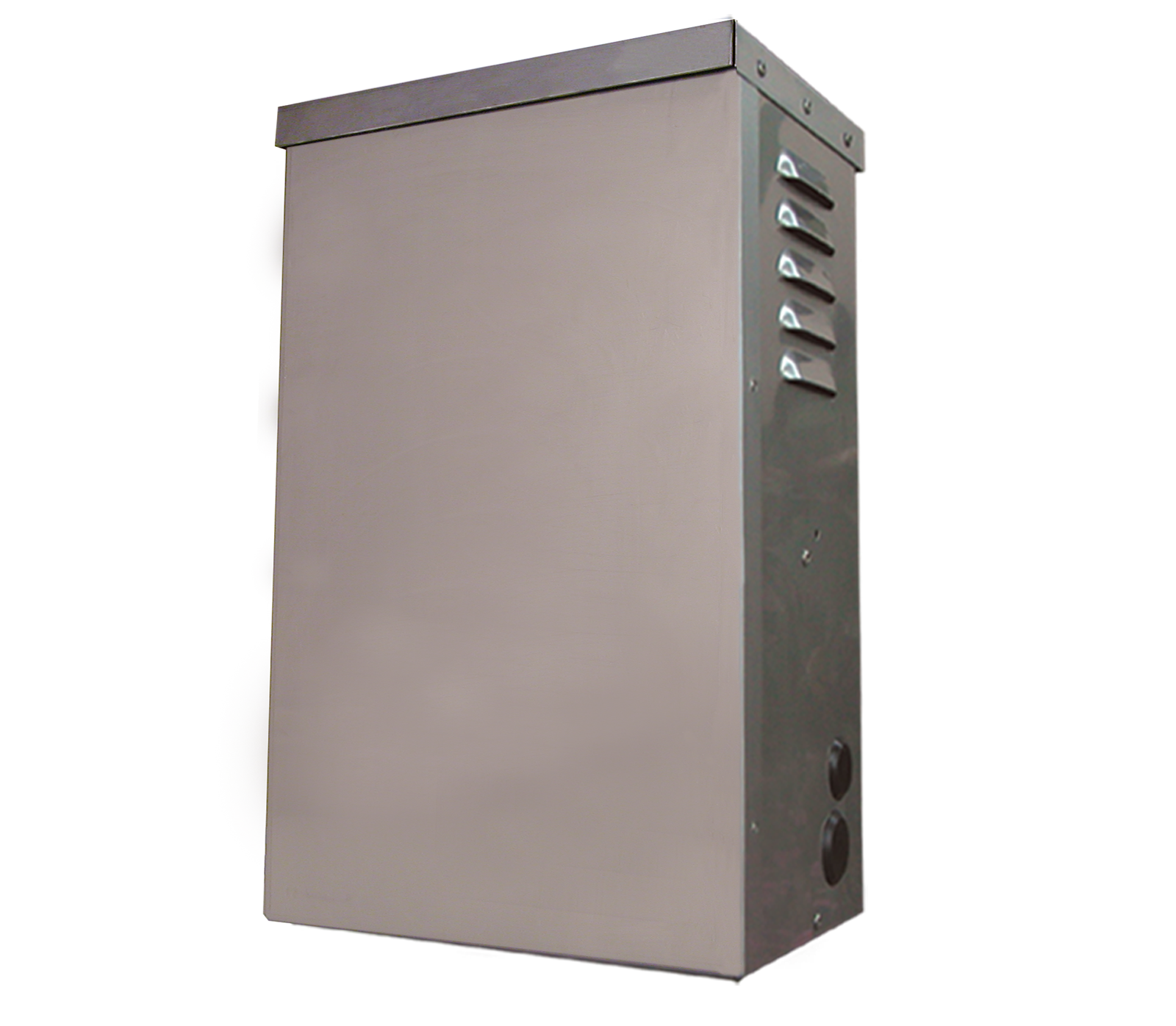

Multi-Matic Transformer-DISCONTINUED

  • TUV Rheinland
transformers

NOTE: This Product Has Been Discontinued

The Multi-Matic compensates for voltage drop by allowing the contractor to select from up to eight different voltage taps (12, 13, 14, 15, 16, 17, 18, 20 and 22 volts). This allows the contractor to customize the voltage for each individual run. It’s like having eight different transformers in one. With this exclusive feature you may have wire runs up to 800′ instead of the traditional short runs of 100′ or less, and still get 12 volts to the fixture.

Mobile Apps
Where to Buy

Construction

304 stainless steel (complies with NEMA 3R).
Core

Engineered single core design with precision grain-oriented steel laminations. High temperature glass-impregnated nylon bobbin and solid copper mag wire. To ensure robust construction each output tap is welded to the mag wire for optimum connectivity.
Primary Protection

Replaceable 3AG Time Delay (glass slow-blow fuse).
Output Terminal

Tinned 6061-T6 aluminum lug strip with 3mm hex set screw for a positive torque connection. Includes 3mm hex key tool with every lugged transformer.
Power Cord

16/3 SJTW power cord. Six feet in length.
Electrical Requirements

Available power ratings 300 - 1120 Watts. Primary voltage is 120 volts, secondary voltage varies from 12V-22V output.
Finish

Stainless Steel finish is standard.
Warranty

Limited Lifetime warranty against manufacturer’s defects.



Please note that all Unique Lighting Systems® transformers have a “Living Finish,” and can be expected to vary in hue over time.

Our transformers come standard with our Stainless Steel or Weathered Brass finish.

Standard Finishes

Stainless Steel Stainless Steel
Weathered Brass Weathered Brass
