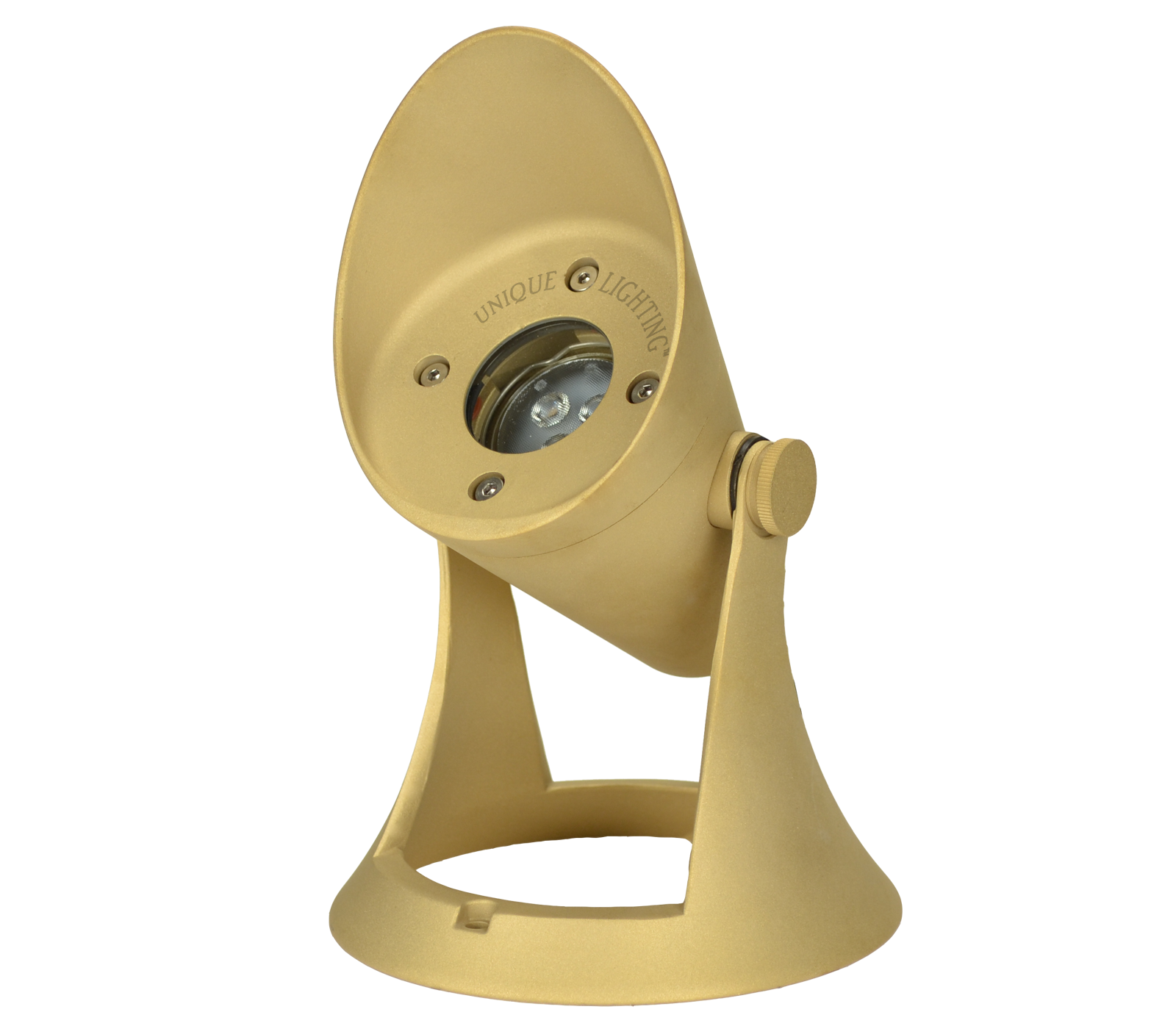

Hydro Odyssey Series

  • TUV Rheinland
Water Light

Heavy and robust, the Hydro is ideal for water lighting a variety of elements, from fountains to waterfalls and rock structures. The cast brass body offers sleek lines while the large base design keeps the Hydro in place. Use the Hydro as a back, side or accent light for the perfect grazing or shadow effect. Recess the Hydro in water areas for the ultimate underwater lighting effect.
Why Odyssey
Mobile Apps
Where to Buy
Cast Brass
20-40-60 Beam Spread
82+ CRI
50' Wire Lead
HUB Ready

Body Precision machined from solid brass casting. Body design provides enclosed, water resistant wire way to protect wires.
Gasket High-temperature silicone o-ring for a water-tight seal.
Shroud Forged brass. Accepts up to one additional lens/hex cell accessory.
Lens  Comes with a complete set of optical designer lenses including spread lens, frosted, hex cell.
Lamp  FLEX GOLD™ Series LED 3W, 4W, 5W, 8W MR16 lamps is 10V-15V. LED lamps are available in 2700K and 3000K color temperatures.
Electrical Requirements A remote 12V transformer is required and may be ordered separately from Unique Lighting Systems®. Voltage range for 12V halogen lamps is 10.8V to 12V.  Voltage range for FLEX GOLD™ Series MR16 LED lamps is 10V-15V.
Socket Specification grade, beryllium copper lamp holder. GU5.3 base.
Wiring 50′ premium grade SJTW cable.
Mounting  Forged brass base included.
Warranty  The Odyssey Family of products from Unique Lighting Systems® carries a Limited Lifetime Warranty against manufacturer’s defects.
Manufacturing  Manufactured to ISO 9001-2008 Quality Systems.

Please note that all Unique Lighting Systems® fixtures have a “Living Finish,” and can be expected to vary in hue over time.

Our fixtures come standard with our one-of-a-kind Weathered Brass finish, natural brass, or natural copper.

Additional colors may be ordered with powder coating options. These colors are subject to additional lead times and will incur a cost premium. A limited warranty applies to all powder coat finishes.

Brass Standard Finishes

Weathered Brass Weathered Brass



Brass Powder Coated Finishes

Tucson Tan Tucson Tan
Verde Green Verde Green
Black Black
White White
Titanium Knight Titanium Knight



Stock powder coated colors displayed are subject to varying lead-times and will incur an additional cost. A Limited Warranty applies to all powder coated products. Custom colors are available upon request. Please inquire about cost and lead times. Contact factory for custom colors and matching paint options.



Custom Powder Coat Colors

In addition to our standard colors, we also offer the full array of Cardinal Paint’s extensive line of powder coat colors. If there is a special color you are looking for, we can match Pantone colors, or even match a physical sample that you provide.
