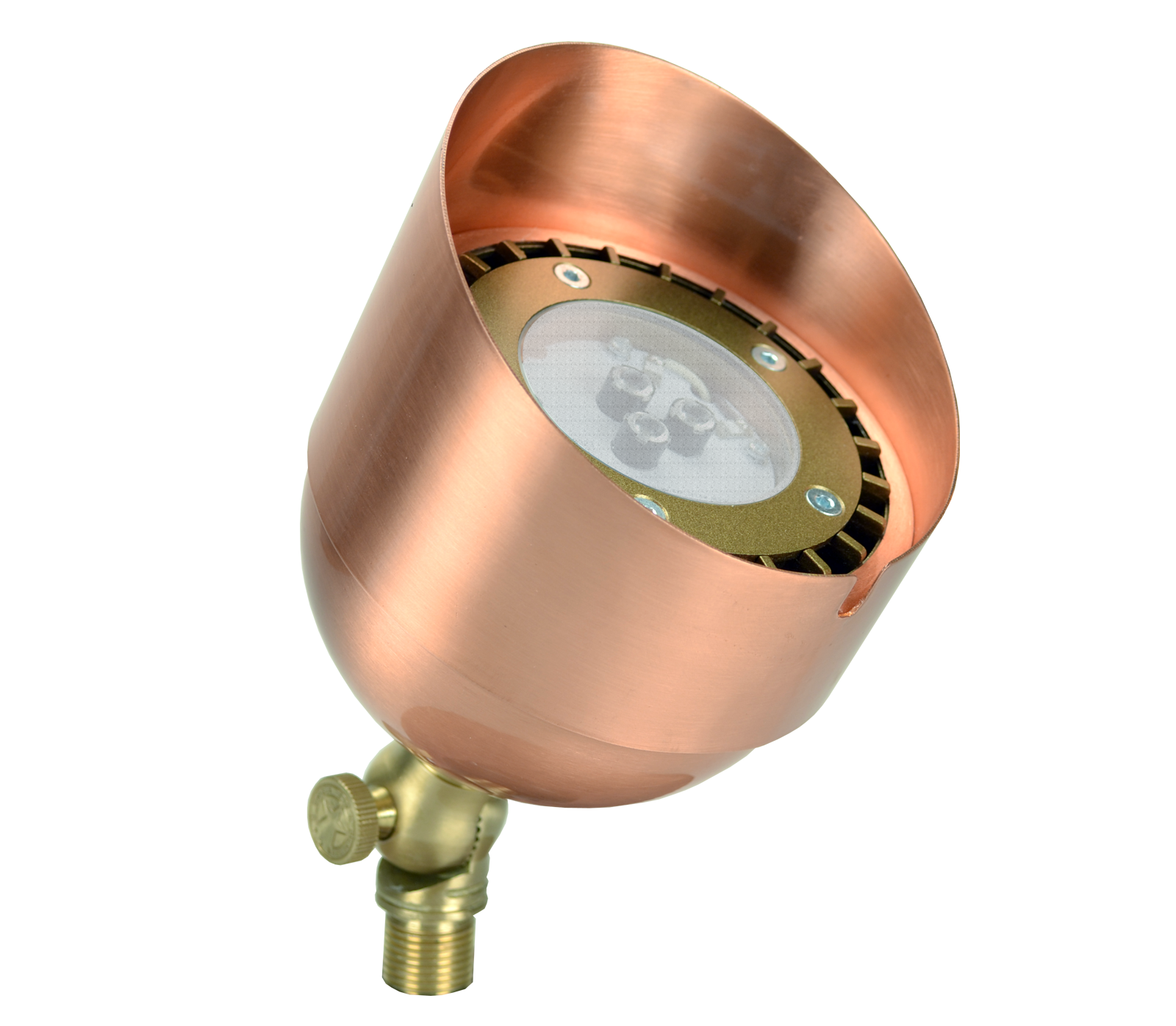

Oxford Knights Series

A powerful and heavy duty directional up-light, the Oxford is perfect when illuminating trees, tall structures, and vast spaces. The Oxford can be used in numerous applications like back, shadow or graze lighting. It is also the perfect directional light to use when up lighting columns.

Why Knights

Mobile Apps

Where to Buy

Specifications

Body	Precision extruded from copper. Body design provides water-resistant wire way to protect wires. Features an integral knuckle for maximum mechanical strength.
Gasket	High-temperature silicone o-ring for a water-tight seal.
Knuckle	Machined brass knuckle with a solid brass adjustable thumb screw. The vertical tilt of 270° and horizontal rotation of 360° for easy aiming. The Orbital Lock Nut™ allows for locking the horizontal rotation without adjusting the stake.
Shroud	Precision extruded from copper.
Lamp	For use with FLEX GOLD™ Series PAR36 LED lamps, available in 5W, 7W, and 13W, in both 2700K and 3000K color temperatures. Also suitable for use with halogen PAR36 lamp up to 50W.
Electrical Requirements	A remote 12V transformer is required and may be ordered separately from Unique Lighting Systems®. Voltage range for 12V halogen lamps is 10.8V to 12V. Voltage range for FLEX GOLD™ Series PAR36 LED lamps is 10V-15V.
Lamp Connection	PAR 36: Screw terminal.
Wiring	Exclusive UF Intelli-Flex wire with anti-moisture migration connections.
Mounting Stake	The standard mounting stake is injection molded PVC with a ½” NPS threaded female fitting.
