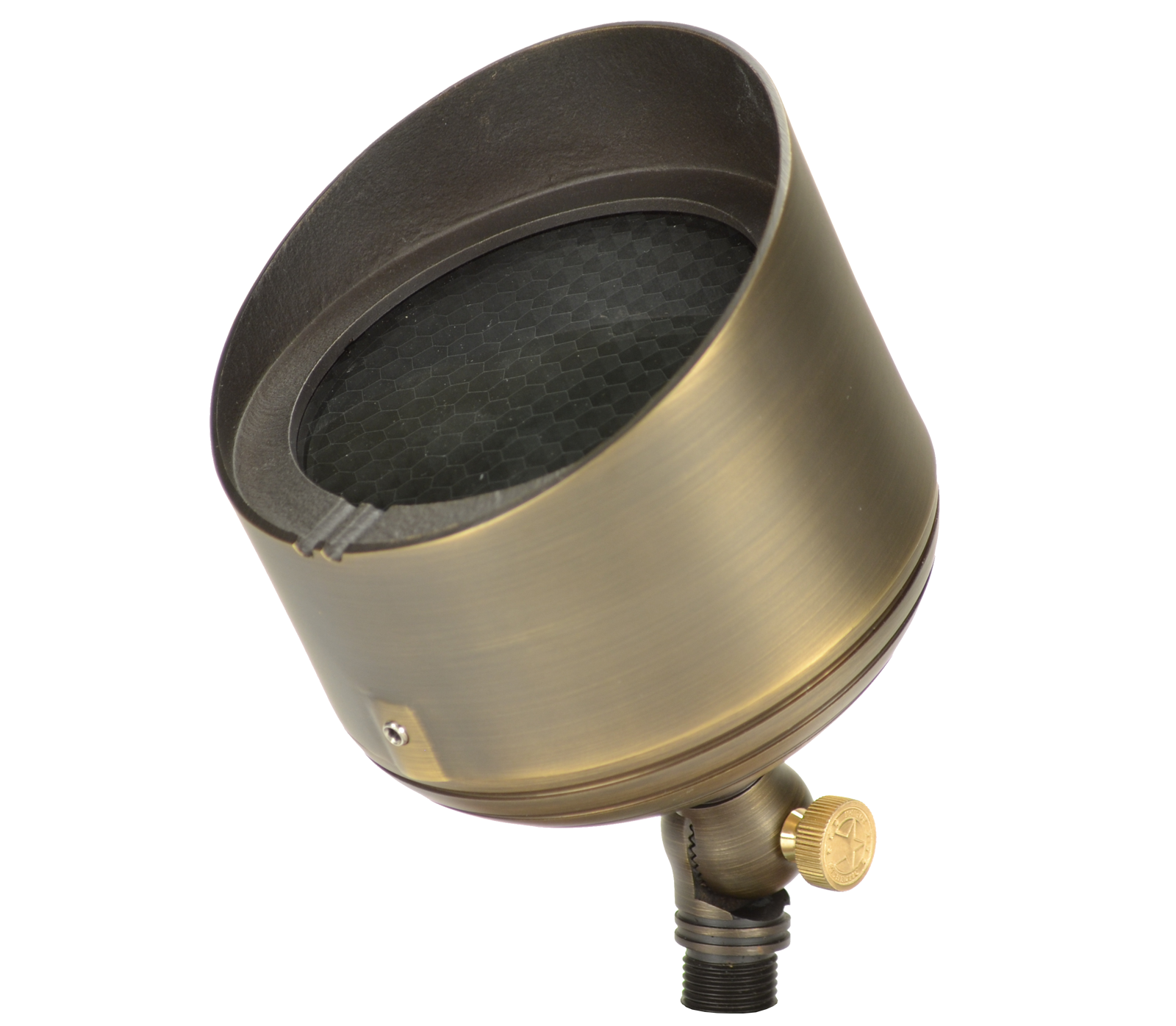

A powerful and heavy duty directional uplight, the Big Bang is perfect when illuminating trees, tall structures and vast spaces. The LED FLEX-FIT™ lamp retainer secures lamp and lens in place making installation fast and easy.
The Big Bang can be ordered with a PAR36 or MR16 lamp.The Big Bang can be used in numerous applications including silhouette, shadow or graze lighting. It is also the perfect directional light to use when uplighting columns.
| Body | Precision machined from solid brass casting. Body design provides enclosed, water resistant wire way to protect wires. Features an integral knuckle for maximum mechanical strength. |
| Gasket | High-temperature silicone o-ring for a water-tight seal. |
| Knuckle | Machined brass knuckle with a solid brass adjustable thumb screw. The vertical tilt of 270° and horizontal rotation of 360° for easy aiming. The Orbital Lock Nut™ allows for locking the horizontal rotation without adjusting the stake. |
| Shroud | Precision machined and comes with a factory sealed shock resistant tempered glass lens to prevent water intrusion. Accepts up to one additional lens/hex cell accessory. |
| Lens | Comes with a complete set of optical designer lenses including a spread lens, frosted lens, and hex cell lens. |
| Lamp | For use with FLEX GOLD™ Series PAR36 LED lamps, available in 5W, 7W, and 13W, in both 2700K and 3000K color temperatures. Also suitable for use with halogen PAR36 lamp up to 50W. |
| Electrical Requirements | A remote 12V transformer is required and may be ordered separately from Unique Lighting Systems®. Voltage range for 12V halogen lamps is 10.8V to 12V. Voltage range for FLEX GOLD™ Series PAR36 LED lamps is 10V-15V. |
| Lamp Connection | PAR 36: Screw terminal. |
| Wiring | Exclusive UF Intelli-Flex wire with anti-moisture migration connections. |
| Mounting Stake | The standard mounting stake is injection molded PVC with a ½” NPS threaded female fitting. |
| Warranty | The Odyssey Family of products from Unique Lighting Systems® carries a Limited Lifetime Warranty against manufacturer’s defects. |
| Manufacturing | Manufactured to ISO 9001-2008 Quality Systems. |
Please note that all Unique Lighting Systems® fixtures have a “Living Finish,” and can be expected to vary in hue over time.
Our fixtures come standard with our one-of-a-kind Weathered Brass finish, natural brass, or natural copper.
Additional colors may be ordered with powder coating options. These colors are subject to additional lead times and will incur a cost premium. A limited warranty applies to all powder coat finishes.
Weathered Brass
Tucson Tan
Verde Green
Black
White
Titanium Knight
Stock powder coated colors displayed are subject to varying lead-times and will incur an additional cost. A Limited Warranty applies to all powder coated products. Custom colors are available upon request. Please inquire about cost and lead times. Contact factory for custom colors and matching paint options.
Custom Powder Coat Colors
In addition to our standard colors, we also offer the full array of Cardinal Paint’s extensive line of powder coat colors. If there is a special color you are looking for, we can match Pantone colors, or even match a physical sample that you provide.
