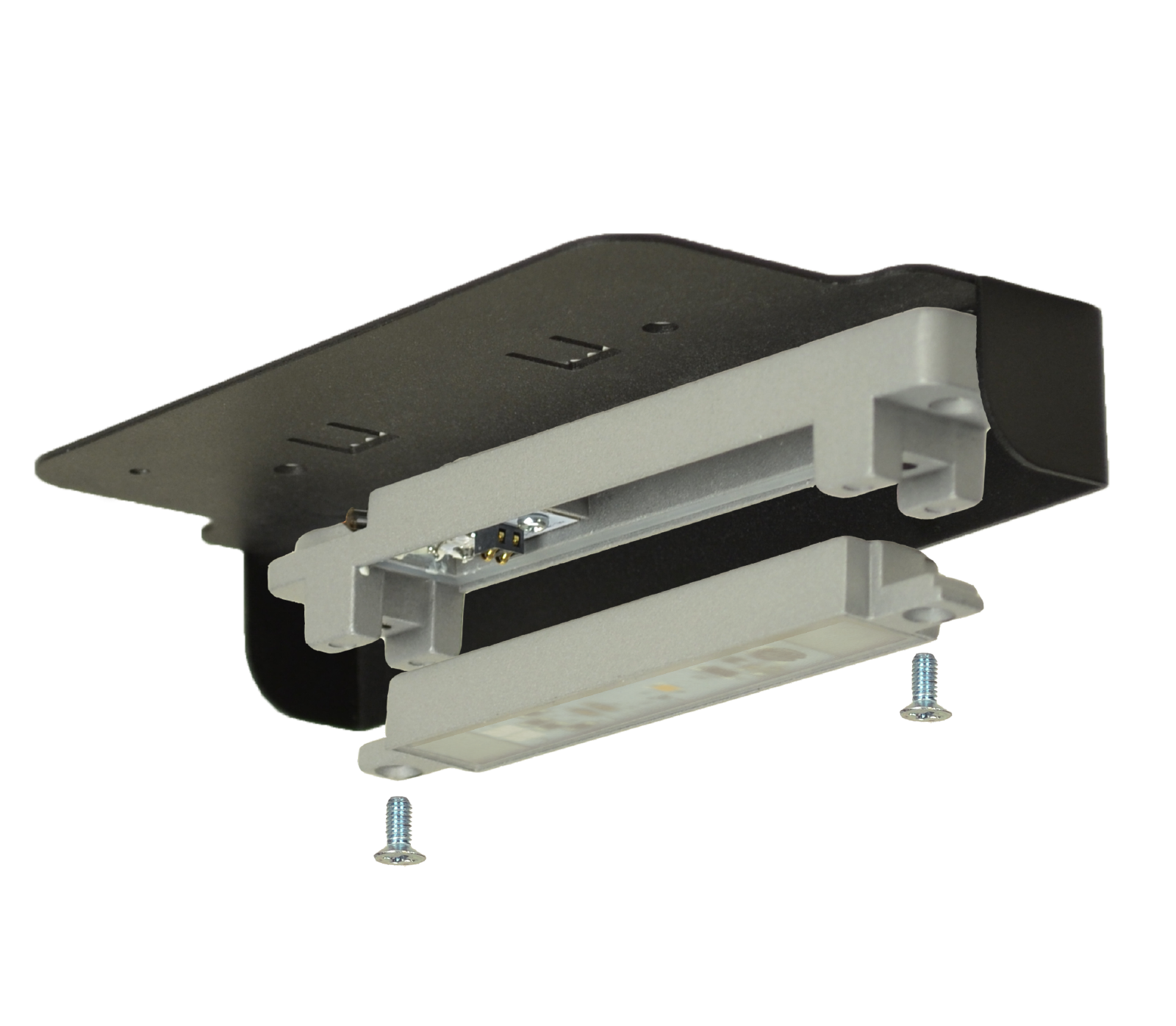

The Iso is now “serviceable”, allowing for trouble-free light engine replacement. Now offering 2 lumen options (40 and 140 lumen models) in both 2700K and 3000K color
temperatures. The new addition of a FLEX Auxiliary Lead for simplifies installation. The new Iso Ledge Light comes with an 8 foot primary wiring lead and a new 2 foot FLEX Auxiliary Lead.
| Materials | Crafted from A360 alloy. |
| Body | Precision formed alloy. |
| Cover | Machined alloy. |
| Lens | Shock resistant, frosted lens. |

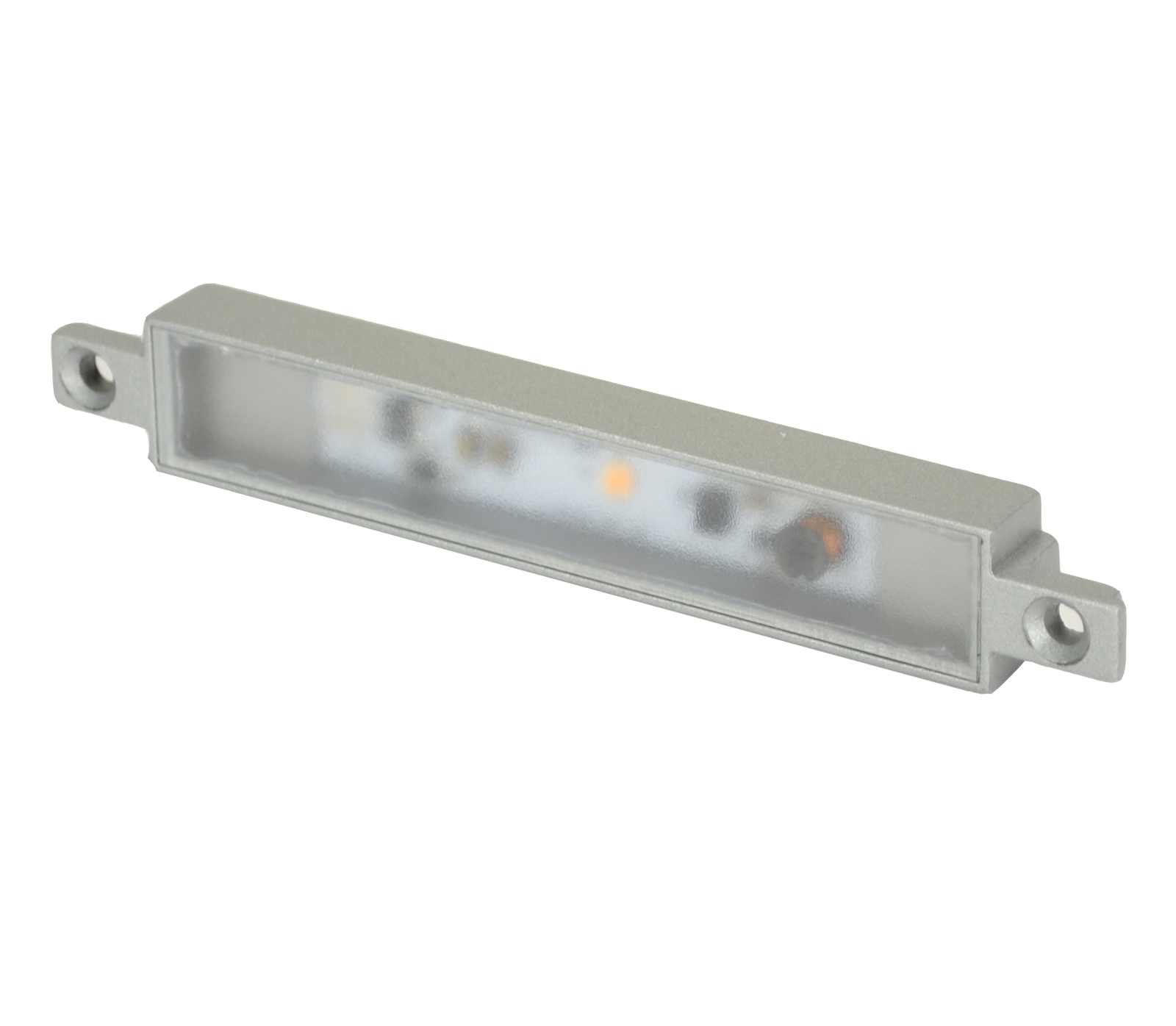

| Lamp | Serviceable 40 and 140 lumen LED light engine options available. 2700K and 3000K options available. |
| Electrical Requirements | A remote 12V transformer is required and may be ordered separately from Unique Lighting Systems®. |
| Wiring | Exclusive UF Intelli-Flex wire with anti-moisture migration connections. |

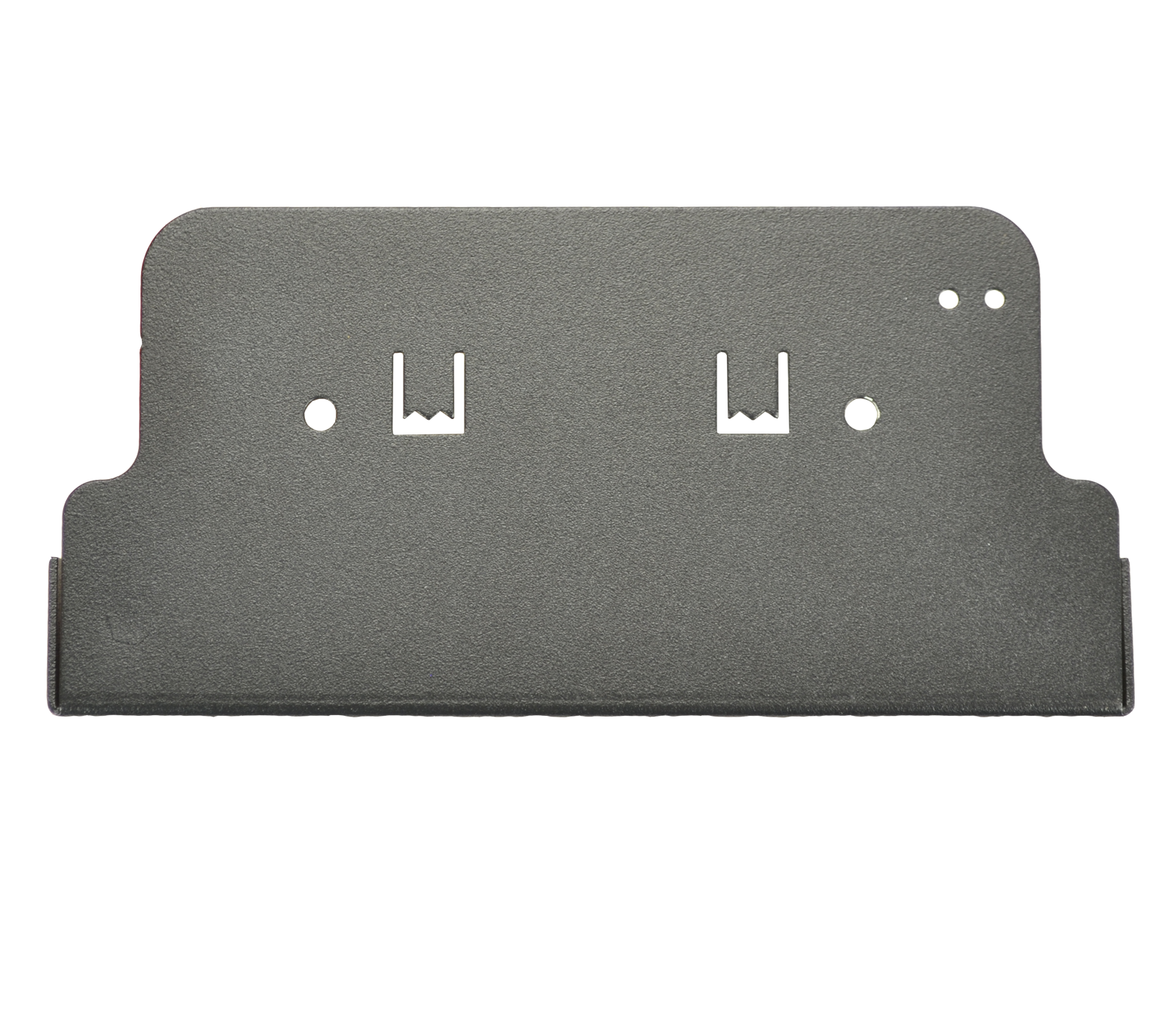

| Mounting Hardware | Mounting plate. |
| Part Number | Lumen | Volt Amps | Color Temp. |
| IS6-LED-27K-BK | 140 | 2700K | |
| IS6-LED-30K-BK | 140 | 3000K | |
| IS6-LED-27K-BZ | 140 | 2700K | |
| IS6-LED-30K-BZ | 140 | 3000K | |
| IS6-27K-40L-BK-F | 40 | 1.0 | 2700K |
| IS6-27K-140L-BK-F | 140 | 3.0 | 2700K |
| IS6-30K-40L-BK-F | 40 | 1.0 | 3000K |
| IS6-30K-140L-BK-F | 140 | 3.0 | 3000K |
| IS6-27K-40L-BZ-F | 40 | 1.0 | 2700K |
| IS6-27K-140L-BZ-F | 140 | 3.0 | 2700K |
| IS6-30K-40L-BZ-F | 40 | 1.0 | 3000K |
| IS6-30K-140L-BZ-F | 140 | 3.0 | 3000K |
| IS6-LED-27K-40L | 40 | 1.0 | 2700K |
| IS6-LED-27K-140L |
140 | 3.0 | 2700K |
| IS6-LED-30K-40L | 40 | 1.0 | 3000K |
| IS6-LED-30K-140L | 140 | 3.0 | 3000K |
| IS6-LED-27K-40L (Wired) | 40 | 2700K | |
| IS6-LED-27K-140L (Wired) | 140 | 2700K | |
| IS6-LED-30K-40L (Wired) | 40 | 3000K | |
| IS6-LED-30K-140L (Wired) | 140 | 3000K |
E-Shield™ is the Elements™ Series coating process that bonds base material with corrosion-resistant processes and finishes it with an extremely durable, polyester powder coat paint. With over 750 hours of salt spray endurance testing and built-in ultraviolet resistance, E-Shield™ will stand up to the harshest environments.Part of being sustainable is making products last longer. Our E-Shield™ process delivers superior corrosion resistance. Both powder coating and e-coating deliver a uniform finish which is beautiful in appearance and superior in durability.
Stage 1: Marine Grade A360 Alloy – Pre-treated with ultrasonic cleaning cycle.
Stage 2: Anodizing – Creates an oxide layer that seals against corrosion.
Stage 3: e-Coating – Automotive industry tough electroplating provides exceptional corrosion resistance even in marine environments.
Stage 4: Super TGIC Thermoset Polyester Powder Coat Paint – Excellent exterior durability and UV stabilized. Resists abrasion and chipping.
Bronze
Black
