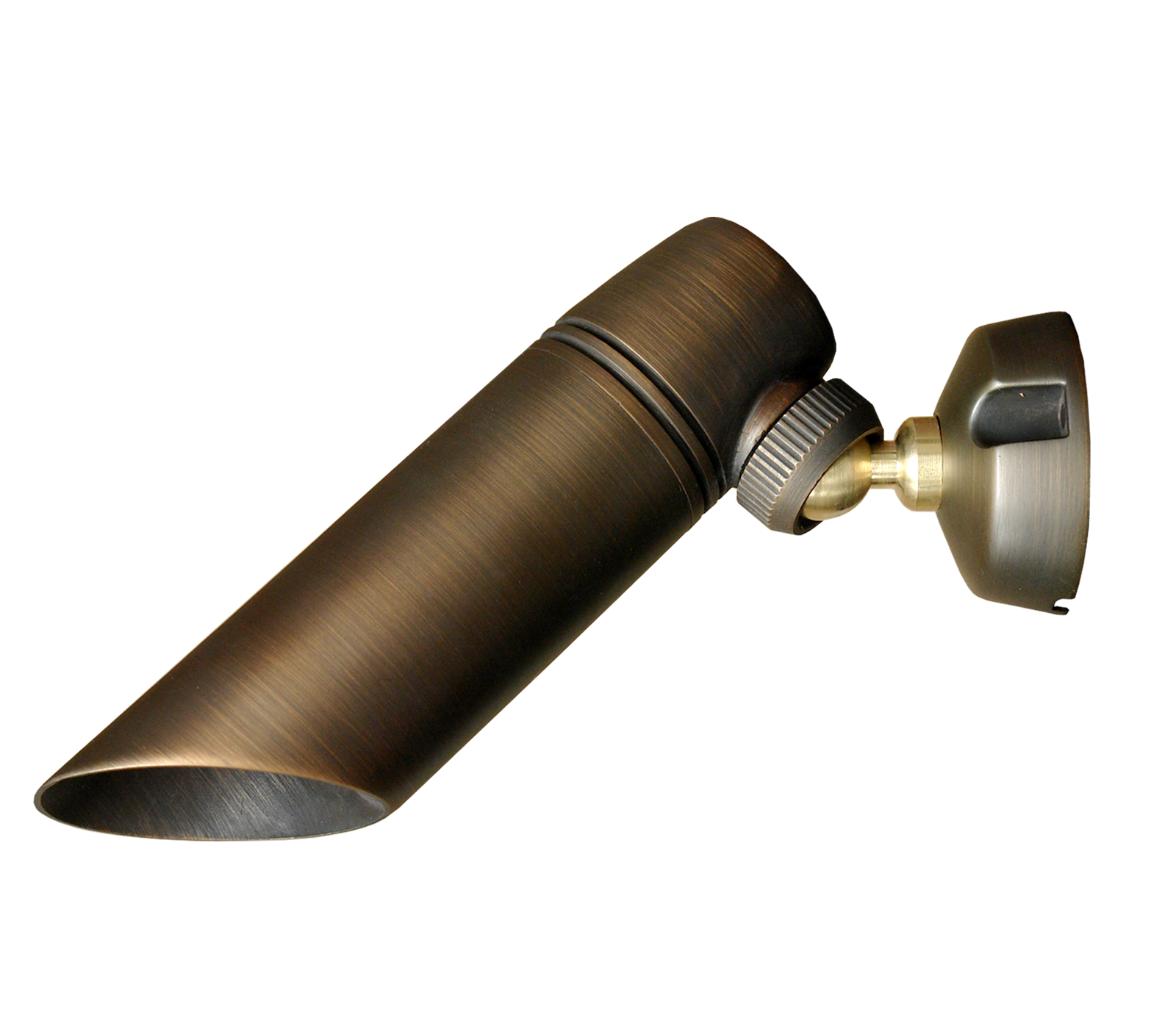

Quasar 1 Odyssey Series

  • TUV Rheinland
Downlight

The Quasar 1 leads the family of downlights by offering a practical solution to most downlight applications. Featuring a lock and load shroud to minimize glare and a revolutionary ball and joint swivel mount allowing 360° rotation capability. The dome mounting bracket makes installation fast and easy by attaching the Sphere Base to the light before being mounted and then threaded in place.

The Quasar 1 accommodates a FLEX GOLD™ Series MR16 LED lamp, five designer lenses, 25’ of #18/2 low voltage wire and a Limited Lifetime Warranty.
Why Odyssey
Mobile Apps
Where to Buy
Cast Brass
20-40-60 Beam Spread
82+ CRI
25' Wire Lead
AMC
360 Orbital Rotation
HUB Ready

Body Precision machined from solid brass casting. Body design provides enclosed, water resistant wireway to protect wires. Features an integral knuckle for maximum mechanical strength.
Gasket High-temperature silicone gasket for a water-tight seal.
Knuckle Machined brass knuckle with a solid brass adjustable thumb screw. The vertical tilt of 270° and horizontal rotation of 360° for easy aiming. The Orbital Lock Nut™ allows for locking the horizontal rotation without adjusting the stake.
Shroud Precision machined and comes with a factory sealed shock resistant tempered glass lens to prevent water intrusion. Includes external injection molded hex louver. Accepts up to one additional lens.
Lens Comes with a complete set of optical designer lenses including a spread lens and frosted lens.
Lamp For use with FLEX GOLD™ Series MR16 LED lamps, available in 3W, 4W, 5W, and 8W. LED lamps are available in 2700K, 3000K and 5000K(4W and 6W only) color temperatures. Also compatible with a halogen MR16 lamp up to 35 Watts. Max LED wattage of 8W.

Please note that all Unique Lighting Systems® fixtures have a “Living Finish,” and can be expected to vary in hue over time.

Our fixtures come standard with our one-of-a-kind Weathered Brass finish, natural brass, or natural copper.

Additional colors may be ordered with powder coating options. These colors are subject to additional lead times and will incur a cost premium. A limited warranty applies to all powder coat finishes.

Brass Standard Finishes

Weathered Brass Weathered Brass



Brass Powder Coated Finishes

Tucson Tan Tucson Tan
Verde Green Verde Green
Black Black
White White
Titanium Knight Titanium Knight



Stock powder coated colors displayed are subject to varying lead-times and will incur an additional cost. A Limited Warranty applies to all powder coated products. Custom colors are available upon request. Please inquire about cost and lead times. Contact factory for custom colors and matching paint options.



Custom Powder Coat Colors

In addition to our standard colors, we also offer the full array of Cardinal Paint’s extensive line of powder coat colors. If there is a special color you are looking for, we can match Pantone colors, or even match a physical sample that you provide.
