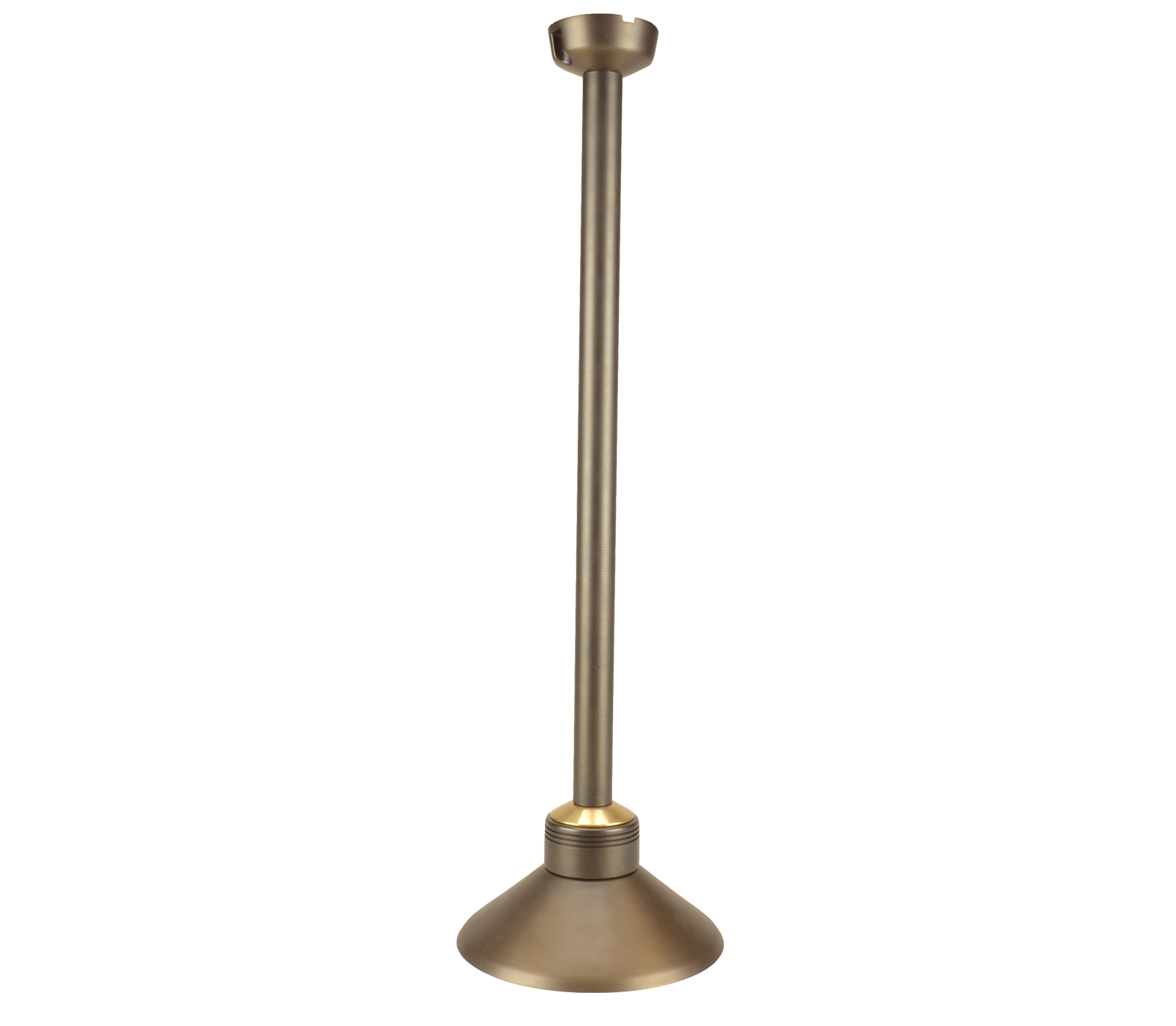

Envoy Odyssey Series

  • TUV Rheinland
Downlight

The Envoy offers soft level lighting with an elegant look. The frosted lens minimizes glare while the FLEX GOLD™ Series T3 LED lamp provides sufficient light to cast soft glows on any area. Ideal for ceilings or overhangs, this fixture is perfect for above outside barbecues or seating and outside entertaining areas. These fixtures bring lighting to the next level without forcing you to use a bullet down light for softer downlighting applications.
Why Odyssey
Mobile Apps
Where to Buy
Solid Brass
360 Beam Spread
82+ CRI
25' Wire Lead
AMC
HUB Ready

Materials Crafted from cast and machined brass.
Body Crafted from brass. Unibody design provides enclosed water-proof wireway. High temperature, silicone o-ring provides a water-tight seal.
Shade Solid brass stamped shade with reflective white powder coated interior.
Lens Tempered frosted lens.
Lamp For use with FLEX GOLD™ Series LED lamps are available in 1W or 2W T3 lamps, 3000K color temperature. Also compatible with up to 20-watt Astro-Brite lamp.
Electrical Requirements A remote 12V transformer is required and may be ordered separately from Unique Lighting Systems®. Voltage range for 12V halogen lamps is 10.8V to 12V. Voltage range for 12W  FLEX GOLD™ Series LED lamps is 10V-15V.
Socket Specification grade, beryllium copper lamp holder. GU5.3 base.
Wiring Exclusive UF Intelli-Flex wire with anti-moisture migration connections.
Mounting Hardware Cast brass sphere base included.

Please note that all Unique Lighting Systems® fixtures have a “Living Finish,” and can be expected to vary in hue over time.

Our fixtures come standard with our one-of-a-kind Weathered Brass finish, natural brass, or natural copper.

Additional colors may be ordered with powder coating options. These colors are subject to additional lead times and will incur a cost premium. A limited warranty applies to all powder coat finishes.

Brass Standard Finishes

Weathered Brass Weathered Brass



Brass Powder Coated Finishes

Tucson Tan Tucson Tan
Verde Green Verde Green
Black Black
White White
Titanium Knight Titanium Knight



Stock powder coated colors displayed are subject to varying lead-times and will incur an additional cost. A Limited Warranty applies to all powder coated products. Custom colors are available upon request. Please inquire about cost and lead times. Contact factory for custom colors and matching paint options.



Custom Powder Coat Colors

In addition to our standard colors, we also offer the full array of Cardinal Paint’s extensive line of powder coat colors. If there is a special color you are looking for, we can match Pantone colors, or even match a physical sample that you provide.
