Proton 12 Elements Series

  • TUV Rheinland
Area Light

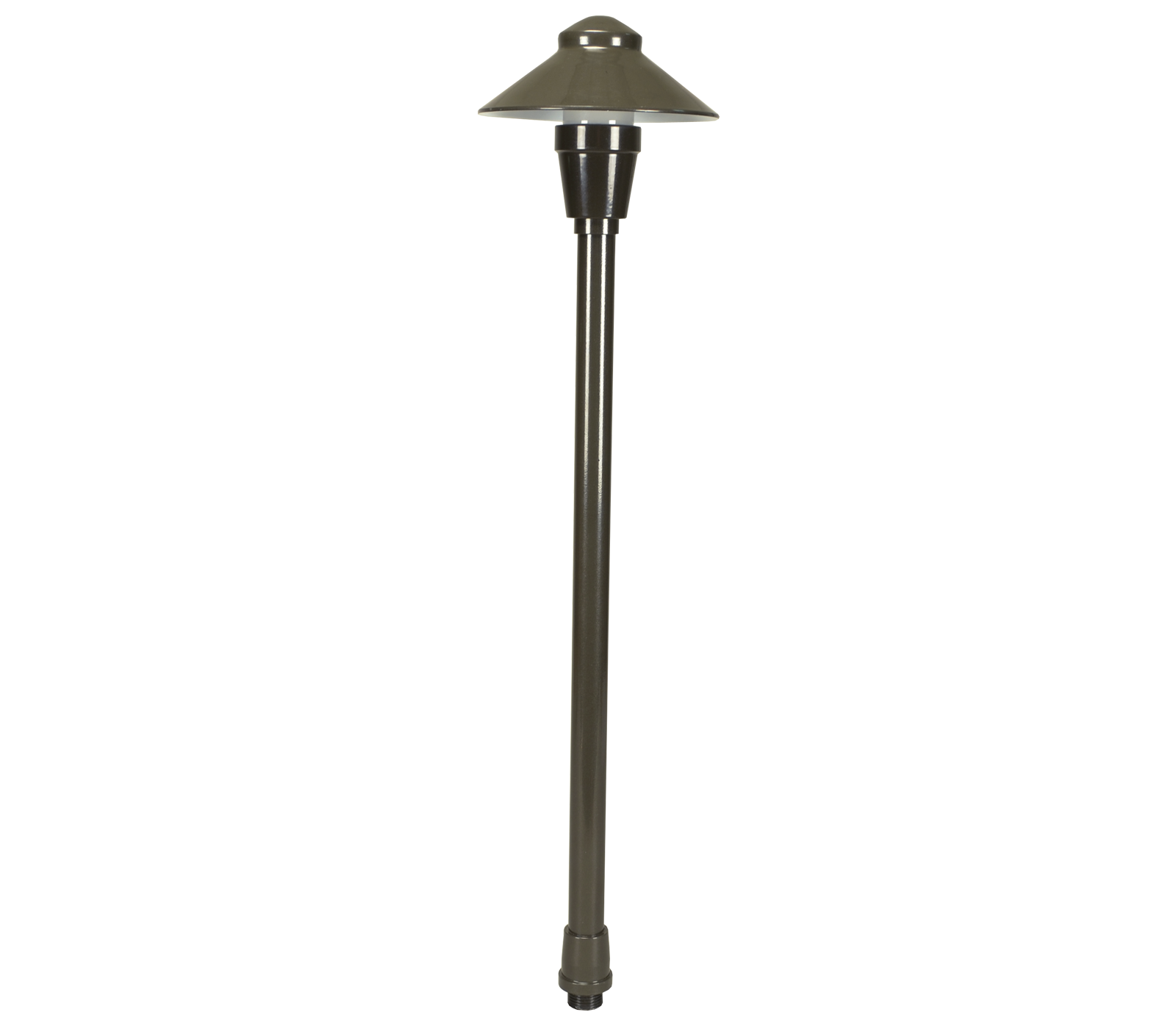

The Proton® fixture features a 5-inch shroud and is the perfect selection for every intimate garden space, planter area or pathway.

Features include, Marine grade A360 alloy construction, Proprietary E-Shield™ process provides 5 distinct layers of protection against corrosion, 15’ HUB-ready wire lead, 1' FLEX GOLD™ Auxiliary Lead, larger composite stake with molded brass threaded insert. White reflection panel under shroud for greater luminance. Available in 12” and 18” stem lengths and Borosilicate glass lens. Accepts Unique’s FLEX GOLD™ Series LED Micro G4 and T3 lamps or halogen lamps.
Why Elements
Mobile Apps
Where to Buy
A360 Alloy
360 Beam Spread
82+ CRI
Flex Wire Lead
AMC
HUB Ready

Materials Crafted from Marine grade A360 alloy.
Stem Unibody design provides enclosed water resistant wire way. Integrated bung for maximum mechanical strength.
Collar Formed from marine grade A360 alloy.
Shroud Reflective Powder Coat Interior.
Finish Proprietary E-Shield™ process provides 5 distinct layers of protection against corrosion.
Lens Shock resistant, frosted Borosilicate Glass lens.
Lamp For use with FLEX GOLD™ Series LED lamps are available in 1W Micro G4 or 1 & 2W T3 lamps. LED lamps are available in 2700K and 3000K color temperatures. Xelogen lamp up to 20W.
Electrical Requirements A remote 12V transformer is required and may be ordered separately from Unique Lighting Systems®. Voltage range for 12V halogen lamps is 10.8V to 12V. Voltage range for FLEX GOLD™ Series LED Micro G4 & T3 lamps is 10V-15V.
Lamp Connection Specification grade, nickel lamp holder. GU5.3 base.
Wiring 15’ 18/2 wire lead and 1′ FLEX™ Auxiliary lead. Pre-stripped HUB-ready leads for quick installation.
Mounting Stake Composite stake with molded brass threaded insert.

E-Shield™ is the Elements™ Series coating process that bonds base material with corrosion-resistant processes and finishes it with an extremely durable, polyester powder coat paint. With over 750 hours of salt spray endurance testing and built-in ultraviolet resistance, E-Shield™ will stand up to the harshest environments.Part of being sustainable is making products last longer. Our E-Shield™ process delivers superior corrosion resistance. Both powder coating and e-coating deliver a uniform finish which is beautiful in appearance and superior in durability.

Stage 1: Marine Grade A360 Alloy – Pre-treated with ultrasonic cleaning cycle.

Stage 2: Anodizing – Creates an oxide layer that seals against corrosion.

Stage 3: e-Coating – Automotive industry tough electroplating provides exceptional corrosion resistance even in marine environments.

Stage 4: Super TGIC Thermoset Polyester Powder Coat Paint – Excellent exterior durability and UV stabilized. Resists abrasion and chipping.

Elements Standard Finishes

Bronze Bronze
Black Black
