• TUV Rheinland
Area Light

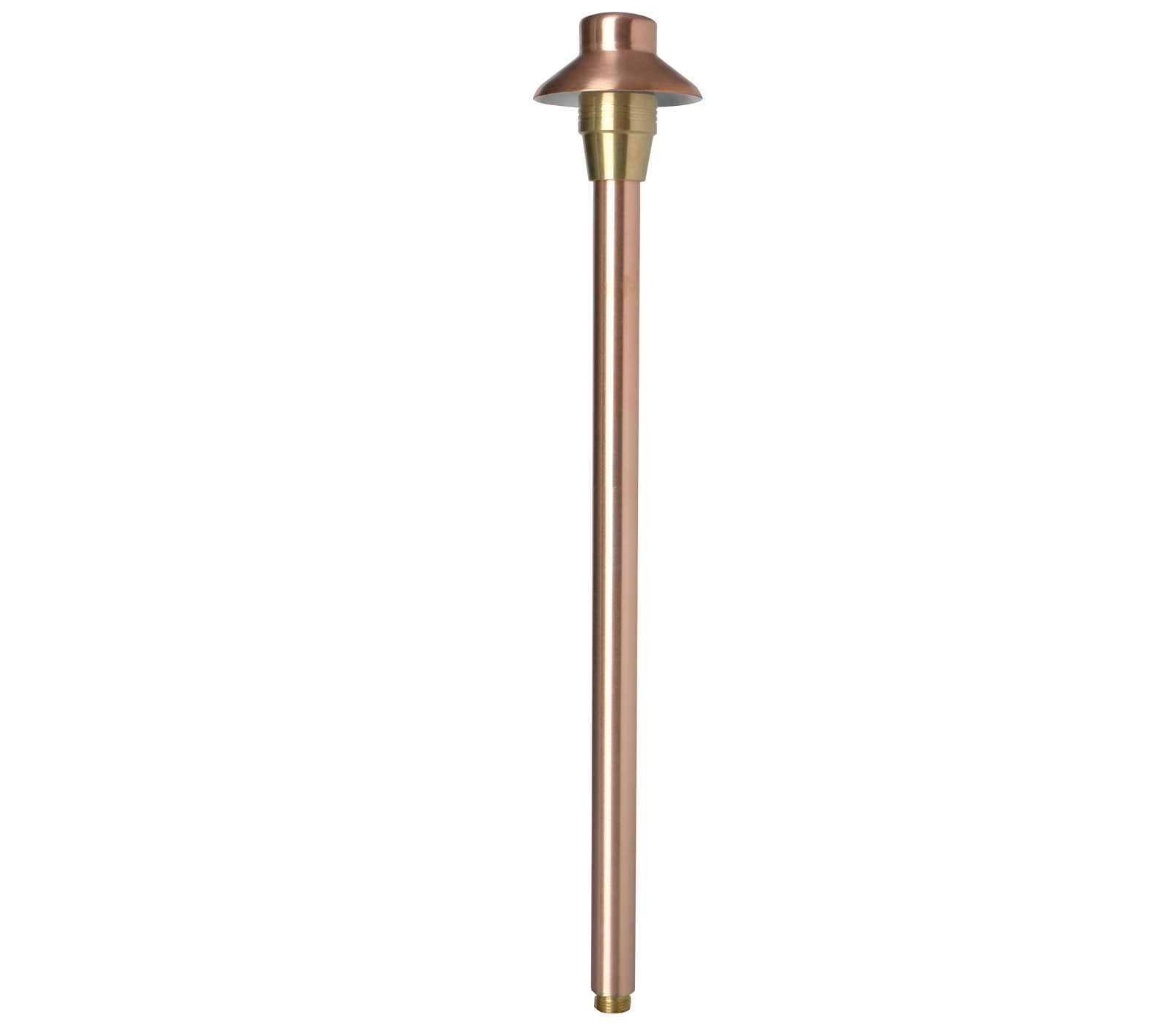

The Illuminator 4 & 6 offers versatile light output by featuring rotating adjustable height setting, allowing various beam spreads. The frosted cylindrical lens minimizes glare while the FLEX GOLD™ Series T3 LED lamp provides sufficient light to cast soft glows on any path or walking area. Ideal for walkways, the Illuminator 4 is also perfect for when planter areas need lighting.

Equipped with a FLEX GOLD™ Series T3 LED lamp, a designer lens and 25’ of #18/2 low voltage wire, the Illuminator 4 carries a 15 Year Warranty.


Solid Copper
360 Beam Spread
82+ CRI
25' Wire Lead
AMC
HUB Ready
Materials Crafted from extruded copper.
Stem Copper unibody design provides enclosed water resistant wire way. Integrated bung for maximum mechanical strength. High temperature, double o-ring retention collar provides a weather-tight seal.
Collar Machined brass with double o-ring retention seal.
Shroud Fully machined. Reflective Powder Coat Interior.
Lens Shock resistant, frosted Borosilicate Glass lens. The lens is threaded and replaceable.
Lamp For use with FLEX GOLD™ Series T3 LED lamps, available in 1W and 2W, 3000K color temperature. Also compatible with up to 20-watt Astro-Brite lamp.
Electrical Requirement A remote 12V transformer is required and may be ordered separately from Unique Lighting Systems®. Voltage range for 12V halogen lamps is 10.8V to 12V. Voltage range for 12V FLEX GOLD™ Series LED lamps is 10V-15V.
Socket Specification grade, beryllium copper lamp holder. GU5.3 base.
Wiring Exclusive UF Intelli-Flex wire with anti-moisture migration connections.
Mounting Hardware The standard mounting stake is injection molded PVC with a ½” NPS threaded female fitting.
Raw Brushed Copper Finish. Fixture finish will change rapidly in different climates.

Copper Standard Finishes

Natural Copper Natural Copper
